# System Status
# System
After entering the web page, click Status > Overview on the left menu.

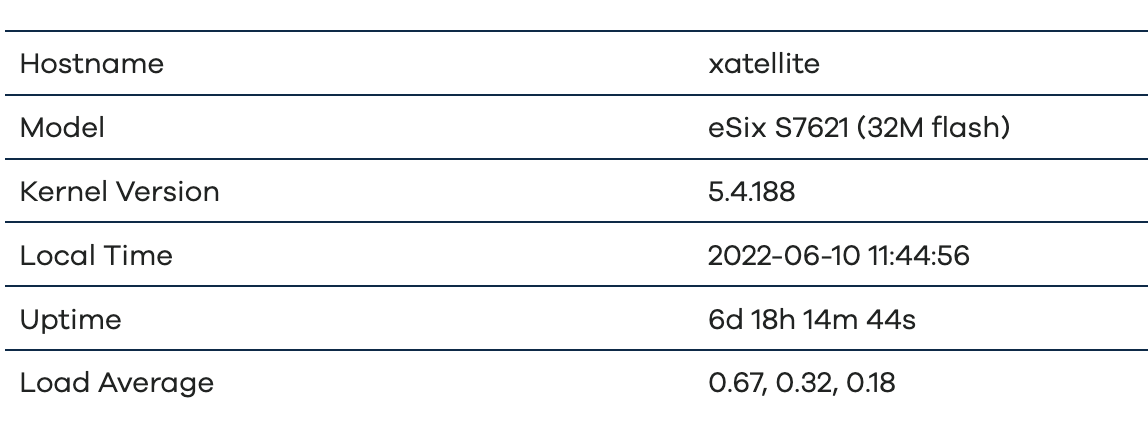

In System on the page, you can view the basic information of the device such as host name, kernel version, model...
# Firmware version

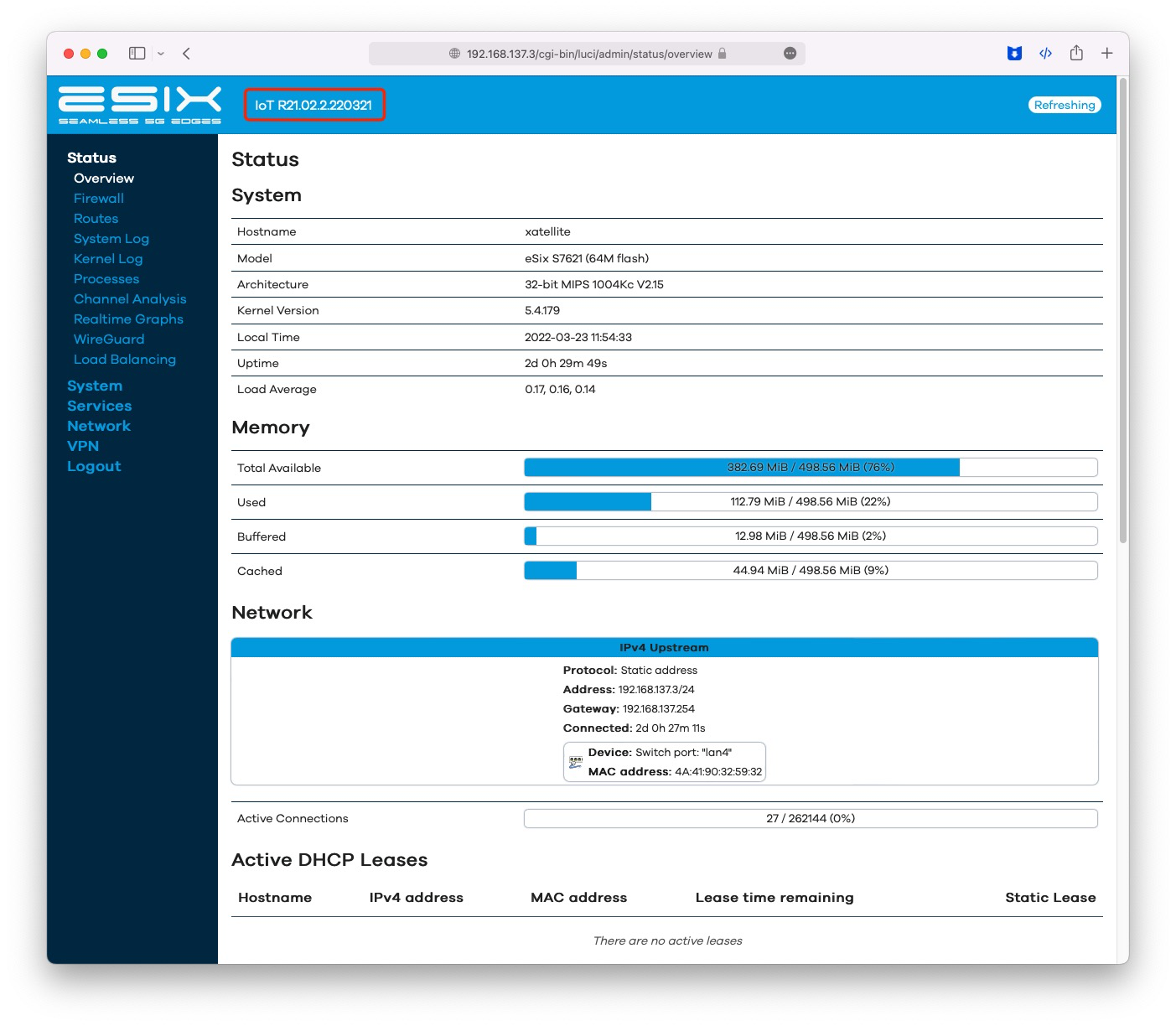

In the upper left corner of the web page, you can see the current firmware version of the device.
# Memory
After entering the web page, click on the left menu Status > Overview.

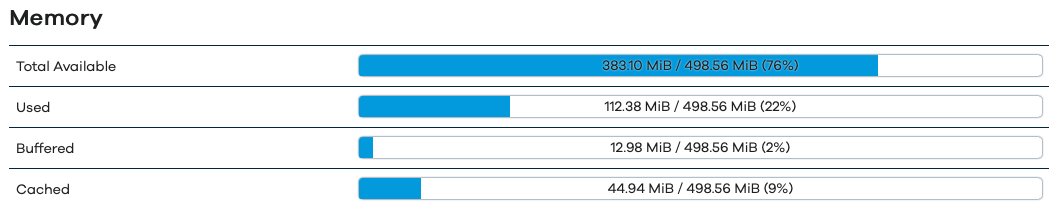

In the Status > Memory of the page, you can view the memory usage of the device in real-time, including: Total Available, Used, Buffered, Cached.
# CPU Load
After entering the web page, click on the left menu Status > Realtime Graphs

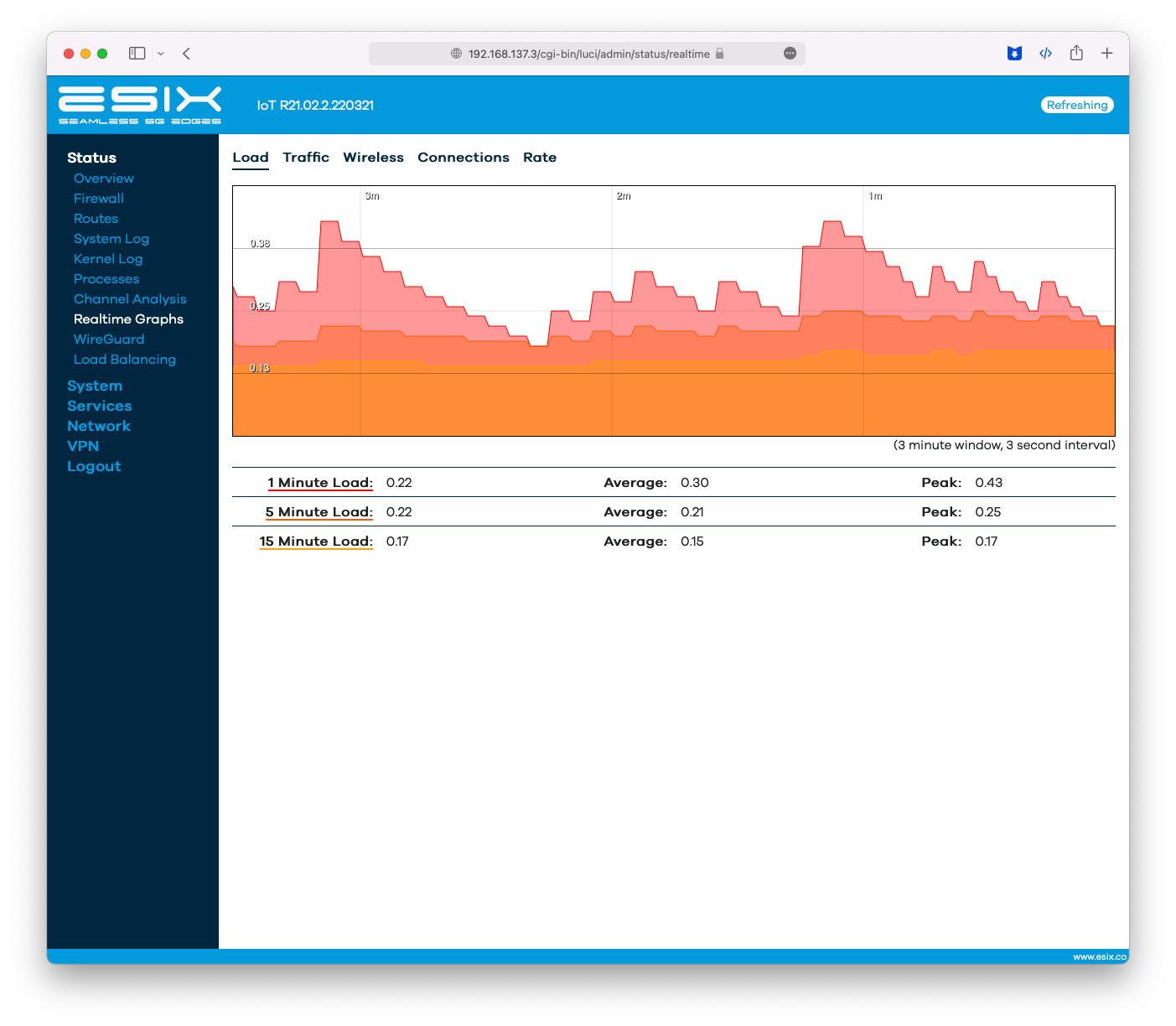

On the Load page, you can view the real-time CPU load of the device.
0.00-1.00 Indicates that the CPU load is very good at this time, and there is no process congestion.
1.00 Indicates that the CPU load is normal, but the system has no extra resources at this time, which needs to be optimized by the administrator.
>1.00 Indicates that the CPU is overloaded and there are processes blocked.
# Log Function
Xatellite Routers have a built-in log function.

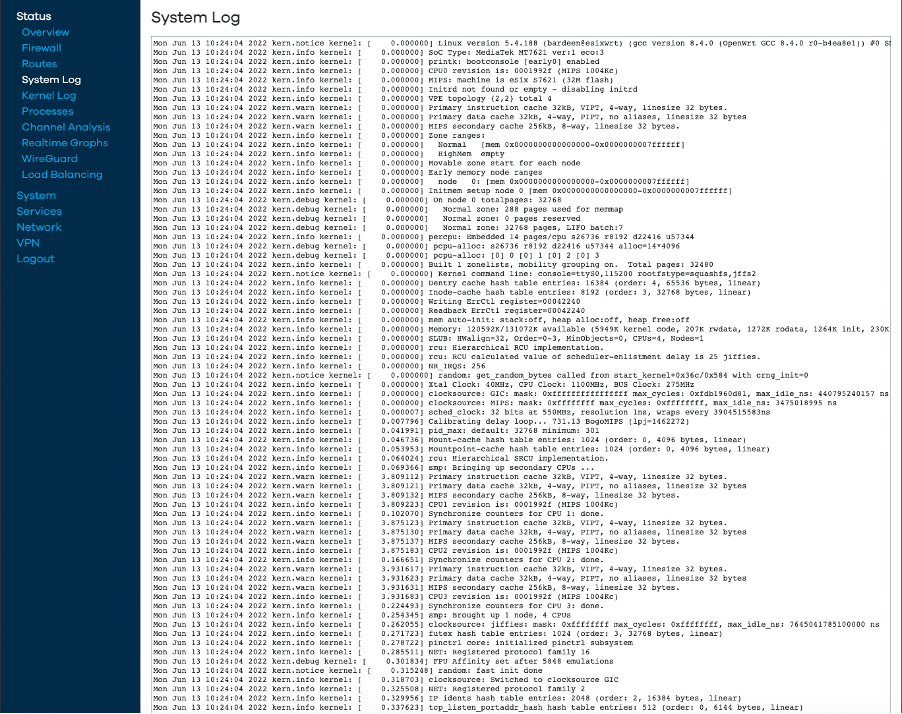

The System Log can be displayed by clicking Status > System Log

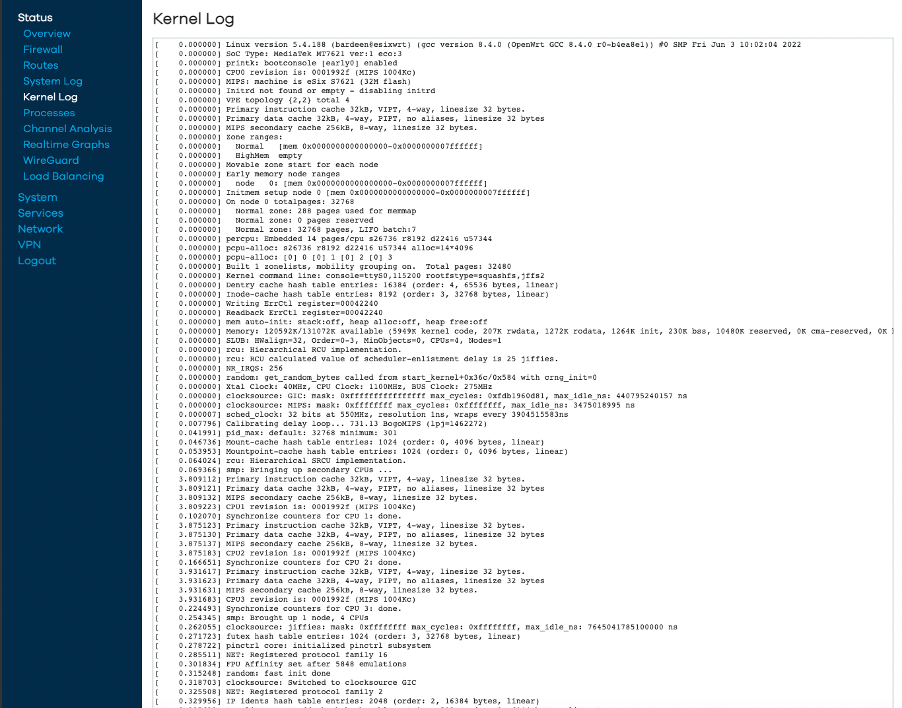

On the other hand, the Kernel Log can be shown by clicking Status > Kernel Log
